for fans of Back To The Future - or LEDs
I know this isn't exactly like the real thing however that would involve crux tubes and so on and I doubt many people who read my site want to piss about with 10,000 volt supplies. Anyway it's pretty much for my halloween/christmas/bonfire night decoration collection.

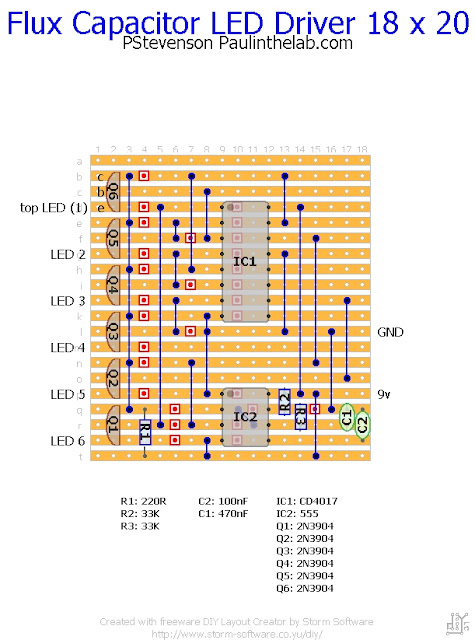

as you can see I have included a layout for the actual display board, although it looks like the LEDs maybe abit too spaced out, in practice they wouldn't fit when they are closer together. However should you just want to use the display board I think that each transistor can drive quite a few LEDs (I think the 2N3904s are rated at 100mA)
As it stands the circuit draws roughly 5mA
The last thing I want to mention is the odd value electrolytic (well odd to some) it is 470nf however you can use a none polarized version it just happened that I have both kinds and the electrolytic takes up less space
I also included a little video to show you what it does. HERE
![]()
![]()
![]()
