I thought I'd take a quick venture into modifying a effects pedal. The one I chose was the Behringer UV300 ( Ultra Vibrato ) I love Behringer gear and in most cases they do a really good job at effects and pretty well everything they put their minds to (see the X3!)
anyway I bought this on a whim cause it was very very cheap, I didn't even bother looking for samples because if I'm honest there is only so many times one can watch people doing out of tune covers of Lucy In The Sky With Diamonds while reviewing Vibrato pedals - also they never turn the rate down to nothing to show you how slow it goes.
as you can probably tell by this post, the "rate" didn't go as slow as I wanted, I like that sort of hypnotic warped record vibrato which this pedal couldn't do however with a little knowledge of how oscillators work and a bit of time probing around with a scope I was able to modify this to go slow enough
In order to slow down the range of the Rate control you basically just have to add capacitors in parallel with C12 and C15 - or you can swap them completely for higher values - the higher you go the slower it is however you need whatever capacitors you add to be very close in value to each other because if one is very different you get an uneven vibrato.
anyway here are the pictures.
if you have any questions - ask!
and you don't need to rehouse behringer pedals, the plastic is very strong - it easily withstands being dropped down stone stairs many times.
Sound Sample HERE
 |
| solder very quickly otherwise you'll be resoldering SMD stuff! |
 |

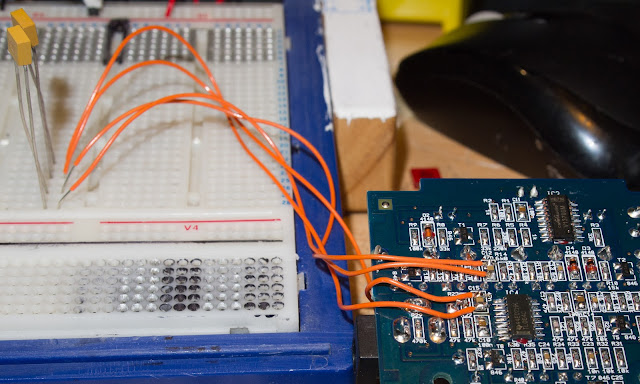

| it's a good idea to do this in order to tailor it to your preference |
 |

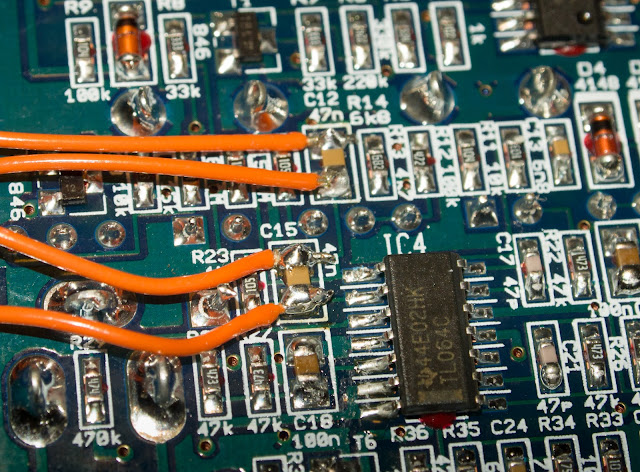

| the part of the circuit I am changing |
 |
| The Behringer UV300 with its nice new switch |
