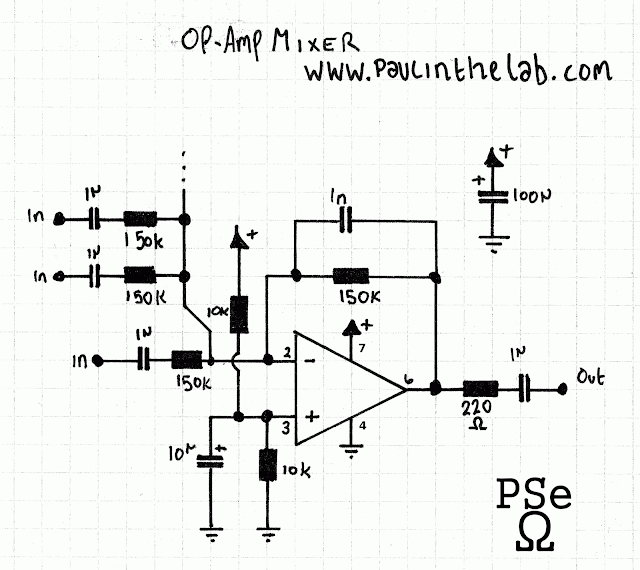

Simple Audio Mixer Stripboard Layout

$
0
0

this is a quick project I made for another project I'm working on but I'm sure people will have uses for this so here you go.

it's also worth noting (as I have before) the purpose of C1 is to limit the bandwidth of the Op-Amp - in this case I've used a value to stop any hiss however you can experiment with the values and make a low pass filter - the higher you go the more it cuts off.
